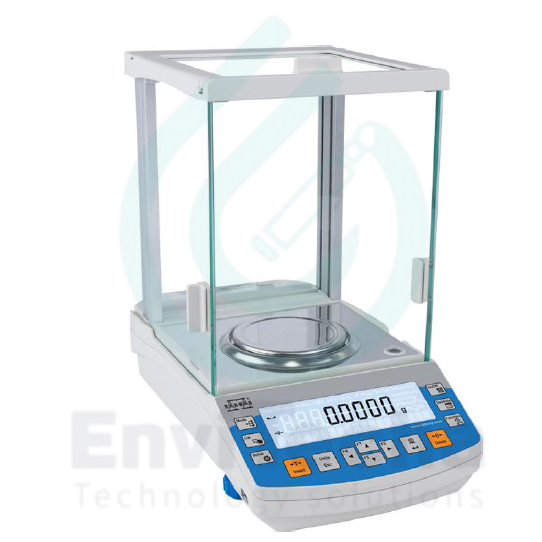

AS 220.R1 ::M PLUS Analytical Balance

Datasheet

Maximum capacity [Max]    220g

Minimum load    10 mg

Readability [d]    0.1 mg

Tare range    -220 g

Standard repeatability [5% Max]    0.07 mg

Standard repeatability [Max]    0.08 mg

Standard minimum weight (USP)    140 mg

Standard minimum weight (U=1%, k=2)    14mg

Permissible repeatability [5% Max]    0.09mg

Permissible repeatability [Max]    0.1 mg

Linearity    ±0.2 mg

Stabilization time    2 s

Adjustment    external

OIML Class    -

Leveling system    manual

Display    LCD (backlit)

Weighing chamber doors    manual

Delivery components
Balance, weighing pan, weighing pan shield, bottom cover, power supply.

Weighing pan dimensions    ø100 mm

Packaging dimensions    490×400×520 mm

Net weight    7.3 kg

Gross weight    9.3 kg

Protection class    IP 43

Communication interface
2×RS232, 2×USB-A (interchangeable), USB-B, Wi-Fi® (option)

Power supply
Adapter: 100 – 240V AC 50/60Hz 0.6A; 12V DC 1.2A
Balance: 12 – 15V DC 0.4A max

Operating temperature    +10 – +40 °C

Relative humidity    40% – 80%
