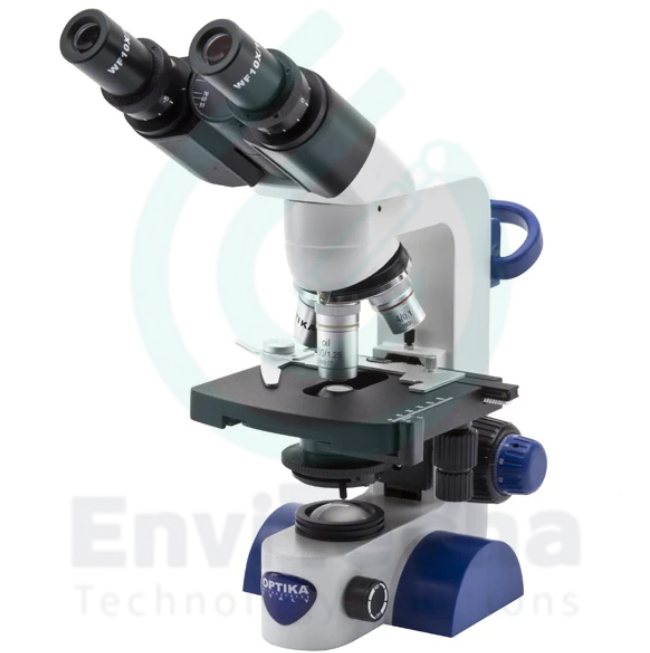

B_69:: OPTIKA MICROSCOPE

Binocular microscope, 1000x, achromatic objectives

Observation Method - Transmitted Light

Brightfield
Yes
Simple polarized light
As optional

Main Body

Type
Upright
Construction material
Aluminum die-cast
Trasportation handle
Yes

Head

Type
Binocular (Siedentopf)
Inclination
30°
360° rotating
Yes
Interpupillary distance (mm)
55-75
Dioptric adjustement
On left tube
Fixing screw for eyepieces
Yes
Tube inner diameter (mm)
23

Eyepieces

Field number (mm)
18
Magnification
10x
Pointer
As optional
Micrometric scale
As optional

Objectives

Optical system
160
Anti-fungus treatment
Yes
Parfocal distance (mm)
45
Standard magnifications
40x-1000x
Type
Achromatic
4x/0.10, W.D. 10.6 mm
10x/0.25, W.D. 7.0 mm
40x/0.65, W.D. 0.5 mm
100x/1.25 (Oil), W.D. 0.13 mm

Focusing System

Type
Coaxial coarse & fine
Coarse total travel (mm)
23
Fine total travel (per single rotation) (mm)
1.2
Fine graduations
100
Fine resolution (μm)
12
Upper stop to prevent contact
Yes

Product Weight
(kg)
2.9
