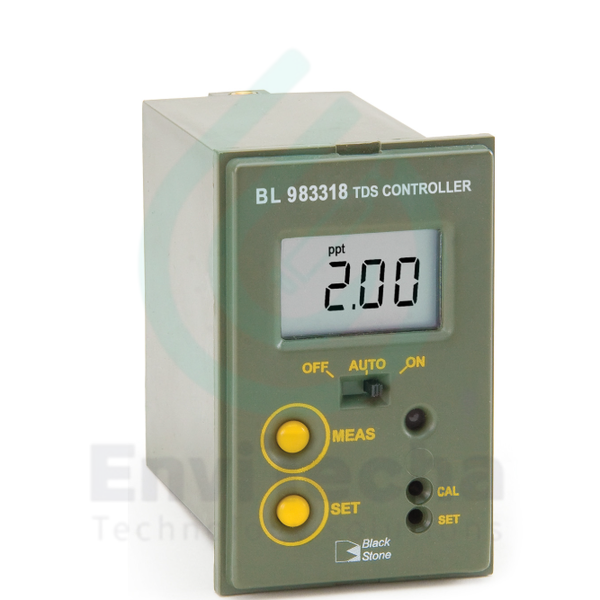

BL983318 ::Mini TDS Controller
BL983318 ::Mini TDS Controller
Couldn't load pickup availability
The BL983318 is a compact, panel mounted, process controller for measuring total dissolved solids (TDS) of a process stream. The device features a large LCD with protective cover. Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is above the set point. The relay can be used to activate a solenoid valve to open and drain a tank (i.e. boiler bleed and feed) or add freshwater until the desired set point is reached. The BL983318 uses a 0.5 conversion factor in which 1.00 mS/cm = 0.50 ppt. The BL983318 can measure TDS from 0.00 to 10.00 ppt (g/L).
Multicolor LED Indicator
LED changes color based on status.
Fire Retardant Casing
For additional safety the controllers outer case is made of fire resistant plastic.
Splash Resistant Cover
A clear plastic cover protects the face panel from dirt and liquids.
| SKU | BL983318-web |
| Name | TDS Mini Controller (0.00 to 10.00 ppt) – BL983318 |
| TDS Range | 0.00 to 10.00 g/L (ppt) |
| TDS Resolution | 0.01 g/L (ppt) |
| TDS Accuracy | ?2% f.s. |
| TDS Calibration | manual, with CAL trimmer |
| EC/TDS Temperature Compensation | automatic from 5 to 50?C (41 to 122?F) with ? =2%/℃ |
| EC/TDS Dosing Relay | maximum 2A (fuse protected), 250 Vac, 30 VDC |
| EC/TDS Dosing Set Point | adjustable from 0 to 10 ppt (g/L) |
| Power Supply | models “-0”: 12 VDC adapter (included) models “-1”: 115/230 VAC; 50/60Hz |
| Dimensions | 83 x 53 x 99 mm (3.3 x 2.1 x 3.9”) |
| Weight | models “-0”: 200 g (7.1 oz.) models “-1”: 300 g (10.6 oz.) |
