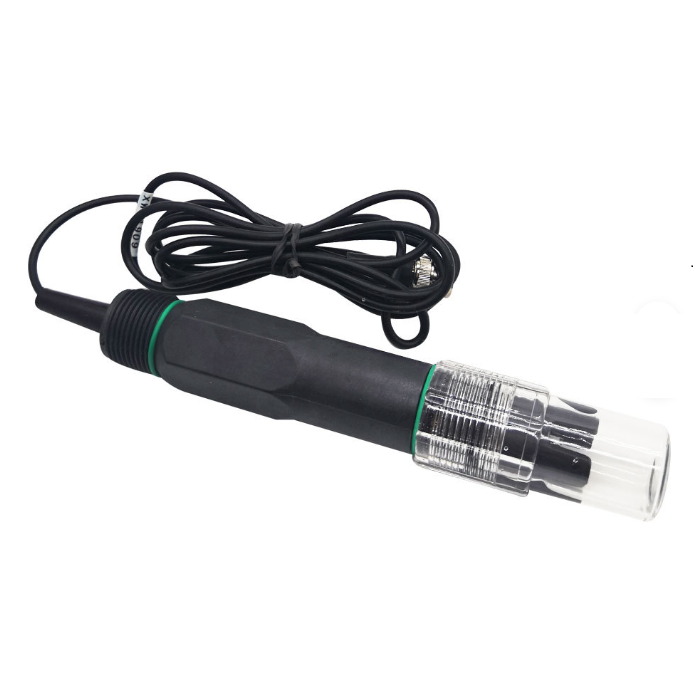

CR2032 pH / ORP electrode probe kit
CR2032 pH / ORP electrode probe kit
Regular price
LE 1,050.00 EGP
Regular price
Sale price
LE 1,050.00 EGP
Unit price
per
Couldn't load pickup availability
Technical Specifications
- pH Measurement Range: 0.00 to 14.00 pH
- ORP Measurement Range: ±1000 mV (extends up to ±1900 mV on specialized transmitter modules)
- Body Material: High-durability ABS plastic housing, engineered to resist chemical corrosion, impact, and scaling.
-
Accuracy Limits:
- pH Mode: Approximately ±0.02 pH
- ORP Mode: Approximately ±1 mV
- Cable Configuration: Comes standard with a heavy-duty, waterproof 5-meter (16.4 ft) multi-core shielded transmission cable.
- Operating Temperature: Suitable for continuous liquid environments ranging from 0°C to 80°C (32°F to 176°F).
- Wiring Interface: Raw stripped wire leads (pigtails) designed for clean connection to signal conditioners, PLCs, or microcontroller converter boards.
- Mounting Thread: Double-ended 3/4" NPT pipe threads (top and bottom) for inline pipe setups or immersion bracket installations.
Key Features
- Continuous Online Monitoring: Built specifically for 24/7 continuous water analysis without signal degradation, minimizing the need for manual sampling.
- Integrated Guard Shield: The clear, slotted shield protects the glass bulb (pH) or platinum band (ORP) from fast-moving suspended solids while maintaining continuous fluid passage.
- Anti-Pollution Reference System: Utilizes a solid polymer electrolyte and a large-area annular Teflon junction to drastically reduce clogging and reference poisoning in harsh wastewater.
- Fast Response & Stability: Engineered with a low-impedance glass structure that stabilizes readings within seconds, even in shifting chemical process lines.
- Low Maintenance: Requires minimal downtime; can be easily refreshed through standard cleaning solutions or stored in potassium chloride (KCl) solution to maintain
