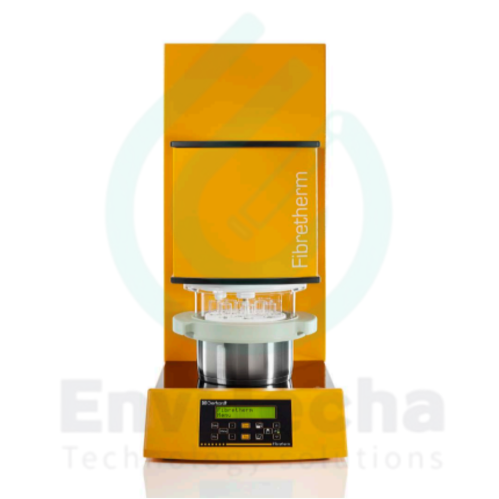

FT 12 :: FIBRETHERM

Technical Data FIBRETHERM:

 Hotplate : Infrared glass ceramic
Capacity boiling vessel [l] : 1,8
Cooling water connection on the unit : 2 x 3/4 Inch thread
Required cooling water connection in the lab : 2 x 1/2 Inch thread
Cooling water pressure [bar] : 1 - 6
Cooling water consumption [l/min] : ca. 5
Compressed air pressure [bar] : 4 - 5
Nominal voltage [V] : 230
Frequency [Hz] : 50
Current [A]:  8,5
Nominal wattage [W] : 1900
Interface 2 x RS : 485
Dimensions W / D / H [mm] : 340 / 640 / 860
Weight [kg] :ca. 42

Description:
12-place complete system incl.:
- 12 x Glass Spacer
- Tubing connection set
- Sample carousel, 12-place
- Drip tray
