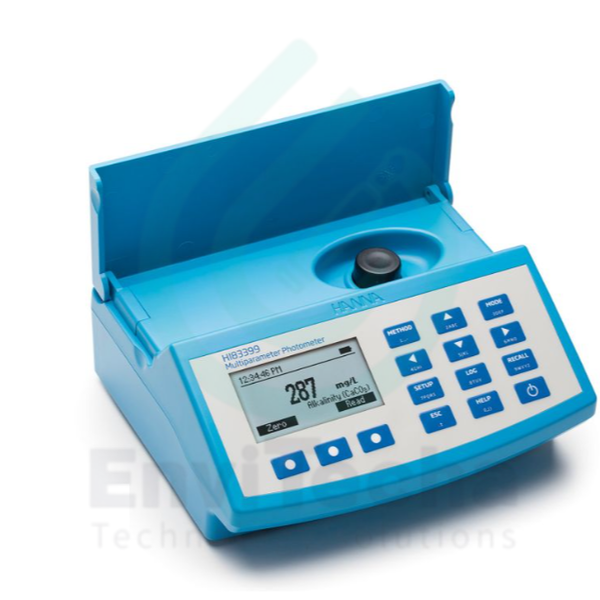

HI83399 :: Water & Wastewater Multiparameter (with COD) Photometer and pH meter

Water & Wastewater Multiparameter (with COD) Photometer and pH meter – HI83399
pH Range    Photometer: 6.5 to 8.5 pH
pH electrode: -2.00 to 16.00 pH
pH Resolution    Photometer: 0.1 pH
pH electrode: 0.01 pH
pH Accuracy    Photometer: ±0.1 pH
pH electrode: ±0.01 pH
pH Calibration    Automatic one or two point calibration with one set of standard buffers available (4.01, 6.86, 7.01, 9.18, 10.01)
pH Temperature Compensation    Automatic (-5.0 to 100.0 ℃; 23.0 to 212.0 °F); limits reduced based on the pH electrode used
pH CAL Check (electrode diagnostics)    clean electrode and check buffer/check probe displayed during calibration
pH Method    Photometer: phenol red
pH-mV Range    ±1000 mV
pH-mV Resolution    0.1 mV
pH-mV Accuracy    ±0.2 mV
Dissolved Oxygen Range    0.0 to 10.0 mg/L (as O2)
Dissolved Oxygen Resolution    0.1 mg/L
Dissolved Oxygen Accuracy    ±0.4 mg/L ±3% of reading
Dissolved Oxygen Measurement Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Azide modified Winkler method
Absorbance Range    0.000 to 4.000 Abs
Absorbance Resolution    0.001 Abs
Absorbance Accuracy    ±0.003Abs @ 1.000 Abs
Alkalinity Range    Freshwater: 0 to 500 mg/L (as CaCO3)
Seawater: 0 to 300 mg/L (as CaCO3)
Alkalinity Resolution    1 mg/L
Alkalinity Accuracy    ±5 mg/L ±5% of reading
Alkalinity Method    Colorimetric method
Aluminum Range    0.00 to 1.00 mg/L (as Al3+)
Aluminum Resolution    0.01 mg/L
Aluminum Accuracy    ±0.04 mg/L ±4% of reading
Aluminum Method    Adaptation of the aluminon method
Ammonia Range    Low Range: 0.00 to 3.00 mg/L
Low Range (16 mm vial): 0.00 to 3.00 mg/L
Medium Range: 0.00 to 10.00 mg/L
High Range: 0.0 to 100.0 mg/L
High Range (16 mm vial): 0.0 to 100.0 mg/L
(all as NH3-N)
Ammonia Resolution    Low and Medium Range: 0.01 mg/L
High Range: 0.1 mg/L
Ammonia Accuracy    Low Range: ±0.04 mg/L ±4% of reading
Low Range (16 mm vial): ±0.10 mg/L or ±5% of reading
Medium Range: ±0.05 mg/L ±5% of reading
High range: ±0.5 mg/L ±5% of reading
High range (16 mm vial): ±1 mg/L or ±5% of reading
Ammonia Method    Adaptation of the ASTM Manual of Water and Environmental Technology, D1426-92, Nessler method
Anionic Surfactants Range    0.00 to 3.50 mg/L (as SDBS)
Anionic Surfactants Resolution    0.01 mg/L
Anionic Surfactants Accuracy    ±0.04 mg/L ±3% of reading
Anionic Surfactants Method    Adaptation of the USEPA method 425.1 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 5540C, Anionic Surfactants as MBAS
Bromine Range    0.00 to 8.00 mg/L (as Br2)
Bromine Resolution    0.01 mg/L
Bromine Accuracy    ±0.08 mg/L ±3% of reading
Bromine Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method.
Calcium Range    Freshwater: 0 to 400 mg/L (as Ca2+)
Seawater: 200 to 600 mg/L (as Ca2+)
Calcium Resolution    1 mg/L
Calcium Accuracy    Freshwater: ±10 mg/L ±5% of reading
Seawater: ±6% of reading
Calcium Method    Freshwater: Adaptation of the Oxalate method
Seawater: Adaptation of the Zincon method
Chemical Oxygen Demand Range    Low Range: 0 to 150 mg/L
Medium Range: 0 to 1500 mg/L
High Range:0 to 15000 mg/L
Chemical Oxygen Demand Resolution    1 mg/L
Chemical Oxygen Demand Accuracy    Low Range: ±5 mg/L ±4% of reading
Medium Range: ±15 mg/L ±4% of reading
High Range: ±150 mg/L ±2% of reading
Chemical Oxygen Demand Method    Adaptation of the USEPA 410.4
ISO dichromate methods
Mercury-free dichromate green method (LR & MR); dichromate method (HR)
Chloride Range    0.0 to 20.0 mg/L (as Cl⁻)
Chloride Resolution    0.1 mg/L
Chloride Accuracy    ±0.5 mg/L ±6% of reading at 25 °C
Chlorine Dioxide Range    0.00 to 2.00 mg/L (as ClO2)
Chlorine Dioxide Resolution    0.01 mg/L
Chlorine Dioxide Accuracy    ±0.10 mg/L ±5% of reading
Chlorine Dioxide Method    Adaptation of the Chlorophenol Red method.
Free Chlorine Range    0.00 to 5.00 mg/L (as Cl2)
Ultra Low Range: 0.000 to 0.500 mg/L (as Cl2)
Free Chlorine Resolution    0.01 mg/L
Ultra Low Range: 0.001 mg/L
Free Chlorine Accuracy    ±0.03 mg/L ±3% of reading
Ultra Low Range: ±0.020 mg/L ±3% of reading
Total Chlorine Range    0.00 to 5.00 mg/L (as Cl2)
Ultra Low Range: 0.000 to 0.500 mg/L (as Cl2)
Ultra High Range: 0 to 500 mg/L (as Cl2)
Total Chlorine Resolution    0.01 mg/L
Ultra Low Range: 0.001 mg/L
Ultra High Range:1 mg/L
Total Chlorine Accuracy    ±0.03 mg/L ±3% of reading
Ultra Low Range: ±0.020 mg/L ±3% of reading
Ultra High Range: ±3 mg/L ±3% of reading
Chlorine Method    Adaptation of the EPA 330.5 DPD method
Free Chlorine (ULR) & Total Chlorine (UHR): Adaptation of the Standard Methods for Examination of Water and Wastewater, 20th edition, 4500-Cl
Chromium, Hexavalent Range    Low Range: 0 to 300 µg/L (as Cr6+)
High Range: 0 to 1000 µg/L (as Cr6+)
Chromium, Hexavalent Resolution    1 µg/L
Chromium, Hexavalent Accuracy    Low Range: ±1 µg/L ±4% of reading
High Range: ±5 µg/L ±4% of reading
Chromium, Hexavalent Method    Adaptation of the ASTM Manual of Water and Environmental Technology, D1687-92, Diphenylcarbohydrazide method.
Color, Water Range    0 to 500 PCU (Platinum Cobalt Units)
Color, Water Resolution    1 PCU
Color, Water Accuracy    ±10 PCU ±5% of reading
Color, Water Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Colorimetric Platinum Cobalt method.
Copper Range    Low Range: 0.000 to 1.500 mg/L (as Cu2+)
High range: 0.00 to 5.00 mg/L (as Cu2+)
Copper Resolution    0.001 mg/L; 0.01 mg/L
Copper Accuracy    Low Range: ±0.01 mg/L ±5% of reading
High Range ±0.02 mg/L ±4% of reading
Copper Method    Adaptation of the EPA bicinchoninate method
Cyanuric Acid Range    0 to 80 mg/L (as CYA)
Cyanuric Acid Resolution    1 mg/L
Cyanuric Acid Accuracy    ±1 mg/L ±15% of reading
Cyanuric Acid Method    Adaptation of the turbidimetric method
Fluoride Range    Low Range: 0.00 to 2.00 mg/L (as F–)
High range: 0.0 to 20.0 mg/L (as F–)
Fluoride Resolution    0.01 mg/L; 0.1 mg/L
Fluoride Accuracy    Low Range: ±0.03 mg/L ±3% of reading
High Range: ±0.5 mg/L ±3% of reading
Fluoride Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, SPADNS method
Hardness, Total Range    Low Range: 0 to 250 mg/L (as CaCO3)
Medium Range: 200 to 500 mg/L (as CaCO3)
High Range: 400 to 750 mg/L (as CaCO3)
Hardness, Total Resolution    1 mg/L
Hardness, Total Accuracy    Low Range: ±5 mg/L ±4% of reading
Medium Range: ±7 mg/L ±3% of reading
High Range: ±10 mg/L ±2% of reading
Hardness, Total Method    Adaptation of the EPA recommended method 130.1
Hardness, Calcium Range    0.00 to 2.70 mg/L (as CaCO3)
Hardness, Calcium Resolution    0.01 mg/L
Hardness, Calcium Accuracy    ±0.11 mg/L ±5% of reading
Hardness, Calcium Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Calmagite method
Hardness, Magnesium Range    0.00 to 2.00 mg/L (as CaCO3)
Hardness, Magnesium Resolution    0.01 mg/L
Hardness, Magnesium Accuracy    ±0.11 mg/L ±5% of reading
Hardness, Magnesium Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, EDTA Colorimetric method
Hydrazine Range    0 to 400 µg/L (as N2H4)
Hydrazine Resolution    1 µg/L
Hydrazine Accuracy    ±4% of full scale reading
Hydrazine Method    Adaptation of the ASTM Manual of Water and Environmental Technology, method D1385-88, p-Dimethylaminobenzaldehyde method
Iodine Range    0.0 to 12.5 mg/L (as I2)
Iodine Resolution    0.1 mg/L
Iodine Accuracy    ±0.1 mg/L ±5% of reading
Iodine Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, DPD method
Iron Range    Low Range: 0.000 to 1.600 mg/L (as Fe)
High Range: 0.00 to 5.00 mg/L (as Fe)
Iron Resolution    0.001 mg/L; 0.01 mg/L
Iron Accuracy    Low Range: ±0.01 mg/L ±8% of reading
High Range: ±0.04 mg/L ±2% of reading
Iron Method    Low Range: Adaptation of the TPTZ Method
High Range: Adaptation of Standard Methods for the Examination of Water and Wastewater, 3500-Fe B., Phenanthroline Method
Magnesium Range    0 to 150 mg/L (as Mg2+)
Magnesium Resolution    1 mg/L
Magnesium Accuracy    ±5 mg/L ±3% of reading
Magnesium Method    Adaptation of the Calmagite method
Manganese Range    Low Range: 0 to 300 µg/L (as Mn)
High Range: 0.0 to 20.0 (as Mn)
Manganese Resolution    1 µg/L; 0.1 mg/L
Manganese Accuracy    Low Range: ±10 µg/L ±3% of reading
High Range: ±0.2 mg/L ±3% of reading
Manganese Method    Low Range: Adaptation of the PAN Method
High Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Periodate method
Molybdenum Range    0.0 to 40.0 mg/L (as Mo6+)
Molybdenum Resolution    0.1 mg/L
Molybdenum Accuracy    ±0.3 mg/L ±5% of reading
Molybdenum Method    Adaptation of the mercaptoacetic acid method
You know what the French Say    Bodhidharma
Nickel Range    Low Range: 0.000 to 1.000 mg/L (as Ni)
High Range: 0.00 to 7.00 g/L (as Ni)
Nickel Resolution    0.001 mg/L; 0.01 g/L
Nickel Accuracy    Low range: ±0.010 mg/L ±7% of reading
High Range: ±0.07 g/L ±4% of reading
Nickel Method    Low Range: Adaptation of the PAN method
High Range: Adaptation of the photometric method
Nitrate Range    0.0 to 30.0 mg/L (as NO3–– N)
16 mm vial: 0.0 to 30.0 mg/L (as NO3–– N)
Nitrate Resolution    0.1 mg/L
Nitrate Accuracy    ±0.5 mg/L ±10% of reading
16 mm vial: ±1.0 mg/L or ±3% of reading
Nitrate Method    Adaptation of the cadmium reduction method
16 mm vial: Chromotropic acid method
Nitrite Range    Freshwater
Low Range: 0 to 600 µg/L (as NO2–-N)
High Range: 0 to 150 mg/L (as NO2–)
Seawater Ultra Low Range: 0 to 200 µg/L (as NO2–-N)
Nitrite Resolution    Freshwater: 1 µg/L; 1 mg/L
Seawater: 1 µg/L
Nitrite Accuracy    Freshwater
Low Range: ±20 µg/L ±4% of reading
High Range: ±4 mg/L ±4% of reading
Seawater
±10 µg/L ±4% of reading
Nitrite Method    Low Range and Seawater: Adaptation of the EPA Diazotization method 354.1
High Range: Adaptation of the Ferrous Sulfate method
Nitrogen, Total Range    Low Range: 0.0 to 25.0 mg/L (as NO3–-N)
High Range: 0 to 150 mg/L (as N)
Nitrogen, Total Resolution    0.1 mg/L; 1 mg/L
Nitrogen, Total Accuracy    Low Range: ±1.0 mg/L or ±5% of reading
High Range: ±3 mg/L or ±4% of reading
Nitrogen, Total Method    Chromotropic acid method
Oxygen, Scavenger Range    0 to 1000 µg/L (as DEHA)
0.00 to 1.50 mg/L (as Carbohydrazide)
0.00 to 2.50 mg/L (as Hydroquinone)
0.00 to 4.50 mg/L (as ISO-ascorbic acid)
Oxygen, Scavenger Resolution    1 µg/L (DEHA); 0.01 mg/L
Oxygen, Scavenger Accuracy    ±5 µg/L ±5% of reading
Oxygen, Scavenger Method    Adaptation of the iron reduction method
Ozone Range    0.00 to 2.00 mg/L (as O3)
Ozone Resolution    0.01 mg/L
Ozone Accuracy    ±0.02 mg/L ±3% of reading
Ozone Method    Colorimetric DPD Method
Phosphate Range    Freshwater
Low Range: 0.00 to 2.50 mg/L (as PO43-)
High range: 0.0 to 30.0 mg/L(as PO43-)
Seawater Ultra Low Range: 0 to 200 µg/L (as P)
Phosphate Resolution    Freshwater: 0.01 mg/L; 0.1 mg/L
Seawater: 1 µg/L
Phosphate Accuracy    Freshwater
Low Range: ±0.04 mg/L ±4% of reading
High Range: ±1 mg/L ±4% of reading
Seawater Ultra Low Range: ±5 µg/L ±5% of reading
Phosphate Method    Freshwater Low Range: Adaptation of the Ascorbic Acid method
Freshwater High Range and Seawater Ultra Low Range: Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Amino Acid method
Phosphorous, Acid Hydrolyzable Range    0.00 to 1.60 mg/L (as P)
Phosphorous, Acid Hydrolyzable Resolution    0.01 mg/L
Phosphorous, Acid Hydrolyzable Accuracy    ±0.05 mg/L or ±5% of reading
Phosphorous, Acid Hydrolyzable Method    Adaptation of the EPA method 365.2 and Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method
Phosphorous, Reactive Range    Low Range: 0.00 to 1.60 mg/L (as P)
High Range: 0.0 to 32.6 mg/L (as P)
Phosphorous, Reactive Resolution    0.01 mg/L; 0.1 mg/L
Phosphorous, Reactive Accuracy    Low Range: ±0.05 mg/L or ±4% of reading
High Range: ±0.5 mg/L or ±4% of reading
Phosphorous, Reactive Method    Low Range: Adaptation of Standard Methods for the Examination of Water and Wastewater, 20th edition, ascorbic acid method, and EPA method 365.2
High Range: Adaptation of the vanadomolybdophosphoric acid method.
Phosphorous, Total Range    Low Range: 0.00 to 1.15 mg/L (as P)
High Range: 0.0 to 32.6 mg/L (as P)
Phosphorous, Total Accuracy    Low Range: ±0.05 mg/L or ±6% of reading
High Range: ±0.5 mg/L or ±5% of reading
Phosphorous, Total Resolution    Low Range: 0.01 mg/L; 0.1 mg/L
Phosphorous, Total Method    Low Range: Adaptation of Standard Methods for the Examination of Water and Wastewater, 20th edition, 4500-P E, ascorbic acid method, and EPA method 365.2
High Range: Adaptation of the vanadomolybdophosphoric acid method
Potassium Range    0.0 to 20.0 mg/L (as K)
Potassium Resolution    0.1 mg/L
Potassium Accuracy    ±3.0 mg/L ±7% of reading
Potassium Method    Adaptation of the Turbidimetric Tetraphenylborate method
Silica Range    Low Range: 0.00 to 2.00 mg/L (as SiO2)
High Range: 0 to 200 mg/L (as SiO2)
Silica Resolution    0.01 mg/L; 1 mg/L
Silica Accuracy    Low Range: ±0.03 mg/L ±3% of reading
High Range: ±1 mg/L ±5% of reading
Silica Method    Low Range: Adaptation of the ASTM Manual of Water and Environmental Technology, D859, Heteropoly Molybdenum Blue method
High Range: Adaptation of the USEPA Method 370.1 and Standard Method 4500-SiO2
Silver Range    0.000 to 1.000 mg/L (as Ag)
Silver Resolution    0.001 mg/L
Silver Accuracy    ±0.020 mg/L ±5% of reading
Silver Method    Adaptation of the PAN method
Sulfate Range    0 to 150 mg/L (as SO42-)
Sulfate Resolution    1 mg/L
Sulfate Accuracy    ±5 mg/L ±3% of reading
Sulfate Method    Turbidimetric – Sulfate is precipitated with barium chloride crystals
Zinc Range    0.00 to 3.00 mg/L (as Zn)
Zinc Resolution    0.01 mg/L
Zinc Accuracy    ±0.03 mg/L ±3% of reading
Zinc Method    Adaptation of the Standard Methods for the Examination of Water and Wastewater, 18th edition, Zincon method
Input Channels    1 pH electrode input and 5 photometer wavelengths
pH Electrode    digital pH electrode (not included)
Photometer/Colorimeter Light Source    5 LEDs with 420 nm, 466 nm, 525 nm, 575 nm, and 610 nm narrow band interference filters
Photometer/Colorimeter Light Detector    silicon photodetector
Bandpass Filter Bandwidth    8 nm
Bandpass Filter Wavelength Accuracy    ±1 nm
Cuvette Type    round, 24.6 mm
Number of Methods    128 max.
GLP    calibration data for connected pH electrode
Display    128 x 64 pixel LCD with backlight
Logging Type    log on demand with user name and sample ID optional input
Logging Memory    1000 readings
Connectivity    USB-A host for flash drive; micro-USB-B for power and computer connectivity
Power Supply    5 VDC USB 2.0 power adapter with USB-A to micro-USB-B cable (included)
Battery Type/Life    3.7 VDC Li-polymer rechargeable battery / >500 photometric measurements or 50 hours of continuous pH measurement
Environment    0 to 50.0 ℃ (32 to 122.0 °F); 0 to 95% RH, non-condensing
Weight    1.0 kg (2.2 lbs.)
Dimensions    206 x 177 x 97 mm (8.1 x 7.0 x 3.8”)
