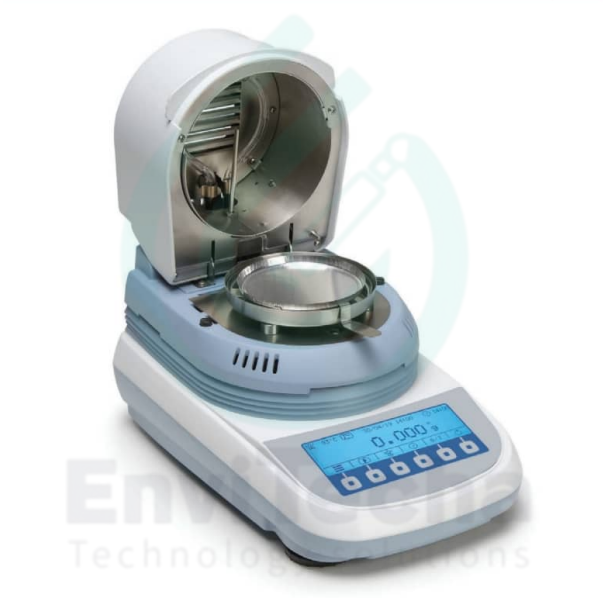

i Thermo 163 Lg :: Bel Italy moisture balance
i Thermo 163 Lg :: Bel Italy moisture balance
Couldn't load pickup availability
Model : i-Thermo 163 Lg
Max (g) :160
Readability [d](g) :0.001
Moisture Readability :0.01 %
Pan (mm) :100mm samples pan
Repeatability (g) : 0,001
Linearity(g) : ± 0,003
precision (2g) : 0,20%
Response time (sec) : ≤ 4
Accessories :
Portable ioniser Ion-A15 (BL0371)
Thermometer calibration KIT (STCI-02)
Serial Printer TLP-50, with date/time (C054)
Serial Printer DPP-250 (AC007)
Serial to USB converter (E1002)
Serial cable for output to printer/PC (E743)
Test pans (10 100mm x 0,5mm) (A753)
Fiber glass test pans Ø 90mm (AC026)
Factory Calibration certificate (BL0333)
Technical data :
Span drift (+10+30 °C): +/-3ppm/°C [i-Thermo A64MG] +/-4ppm/°C [other models]
Dimensions LxWxH (mm): 345x215x235
Maximum dimension of container on the pan: 100mm (10) x 25mm (height)
Power supply 110-230Vac, 50/60Hz, output 24V 1A 13VA [i-Thermo A64MG] output 9V 1,2A 10VA [ather models]
Heater: 230V AC 50/60Hz, 400Watt
Net Weight: 6,1Kg (A64MG and 163MG)
Net Weight: 4,7Kg (163LG and 62LG
