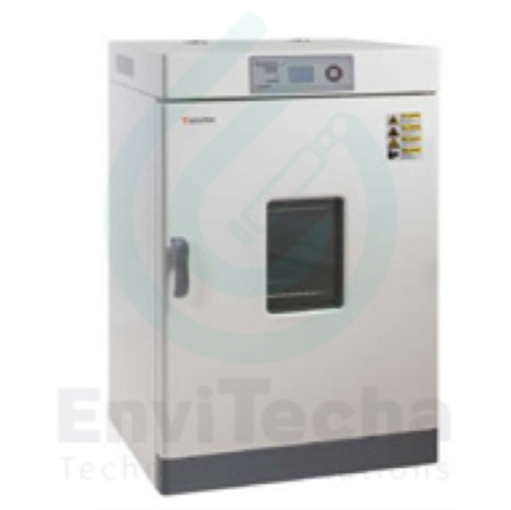

Incubator fcl-125d

Description

 FCI series electrothermal incubator is the most generally used incubator in laboratories. With quickly heating up and good temperature uniformity, FCI series incubator is widely used for for bacteria culture, fermentation and constant temperature test in hospital, pharmaceutical industry, biochemical field and agricultural research and other departments.

 Features

1. High quality material: Mirror stainless steel inner chamber and shelf, convenient for cleaning and disinfection, outer plate is coated with Akzo powder, has elegant appearance and good corrosion resistant.
2. Good temperature uniformity: 30L to 125L model are with vertical double ducts, 230L model is with special designed base duct, to ensure all size chamber temperature uniformity within ±1°C
3.  Heat isolated casing and door: The incubator sides, top and door are all filled with heat-insulating material (not including glass), to ensure the operators are not scalded.
4.  Low noise: FCI incubator adopt high quality motor and sound insulation material to protect lab environment.
5. Independent temperature limiter (Model L) L type add a independent digital limiter, double guarantee the experiment will not fail because of over temperature.

Model                  FCI-125d
                       FCI-125l
Heating type           forced air
performance:-
temp .range              RT+5-80°C
temp .resolution         0.1°C
temp . fluctuation        ±0.5°C
temp accuracy           ±1 °C
structure:-
chamber material       mirror Stainless steel
external material       cold rolled steel, powder coating
thermal insulation        aluminum silicate fiber
heater                  Heating tube
rated power             0.60kw
air outlet              Inner diameter Ø28mm 1.Top
controller :-
temp .control            PID control
temp. display           D: 4 digital LED display L: LCD display
timer                   0-9999minutes
sensor                  P1100
additional function     deviation correction, menu button lock, power failure compensation, power failure memory
Safety Device  :-
                             over-temperature alarm; independent limiter (L model)
inner (W*D*H)/mm        500*450*550
exterior (W*D*H)/mm     618*640*963
packing (W*D*H)/mm      762*706*1087
capacity                125l
shelf load-bearing      15kg
shelf number            2(standard)
voltage                 AC220V/10.5A
N.W/G.W(kg              60/66
Optional configuration  Shelf: RS485(L model): USB(L model): Printer(L model): SMS alarm (L model)
