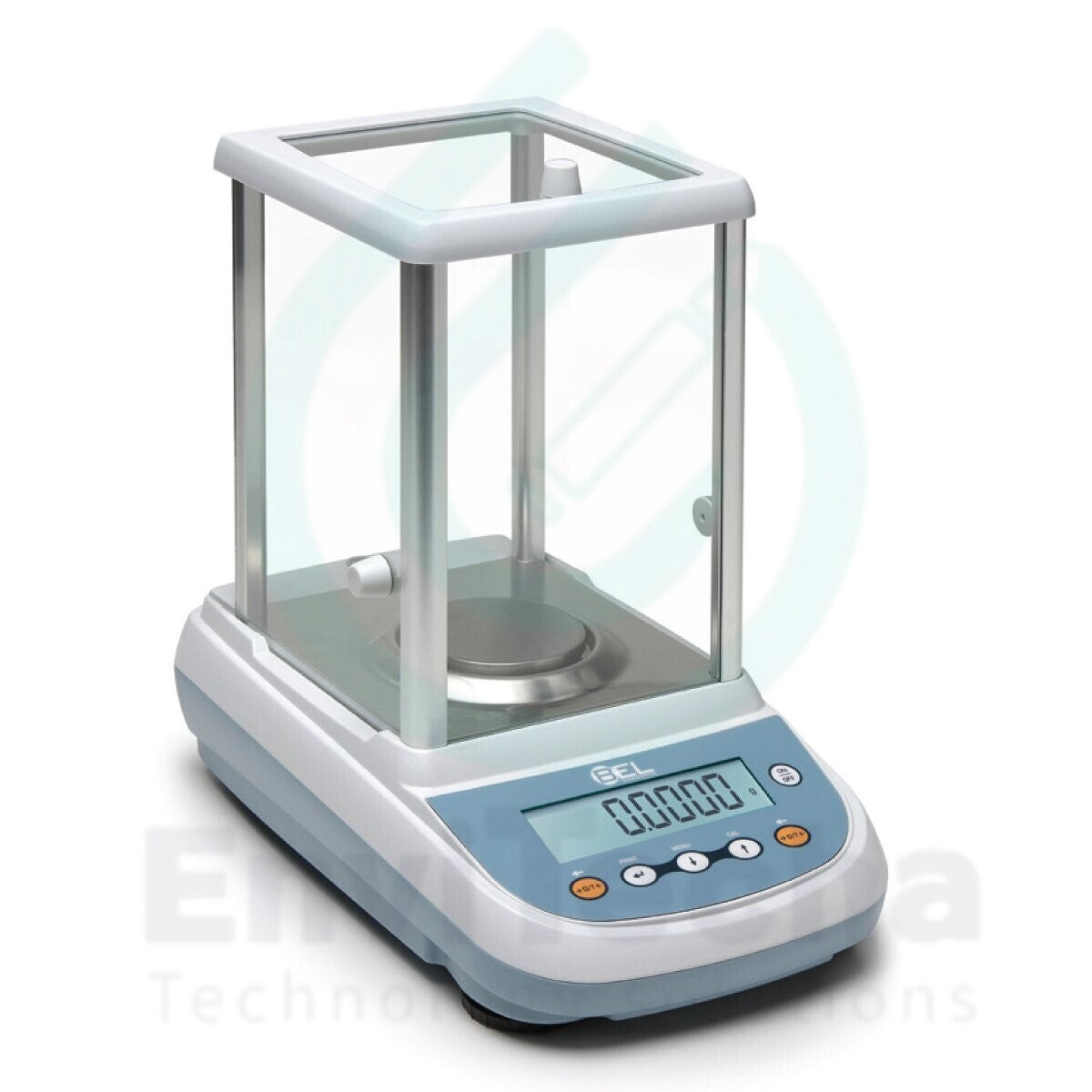

M214Ai :: Analytical Balance

Technical Features:
Capacity [Max]    220g

Resolution [d]    0,1mg

Calibration    Automatic internal

Pan size    Ø 80 mm

Response time (sec.)    ≤4

Linearity    ± 0,0003g

Repeatibility    0,1mg

Verification    [M]

Minimum Load    10 mg

Display    LCD

Tare Range (Subtractive)
220 g

Span Drift In +10…+30°c    ± 2 ppm/°C

Interface    RS232

Database Capacity
-

Windshield Type And Dimensions    3 sliding windows / 162x171x225 mm

Working Temperature    5 - 35°C (15-30°C for verified models)

Power Supply    110-230Vac. 50/60Hz, output 24V 500mA 13VA

Power Consumption (Max)    2 Watt

Calibrates With (Class)    200 g (E2)

Balance Dimensions (W X L X H)    215 x 345 x 345 mm

Net Weight / Gross Weight, Approx.    6,6 / 9,2 Kg

Package Size (W X L X H)    390 x 520 x 630 mm
