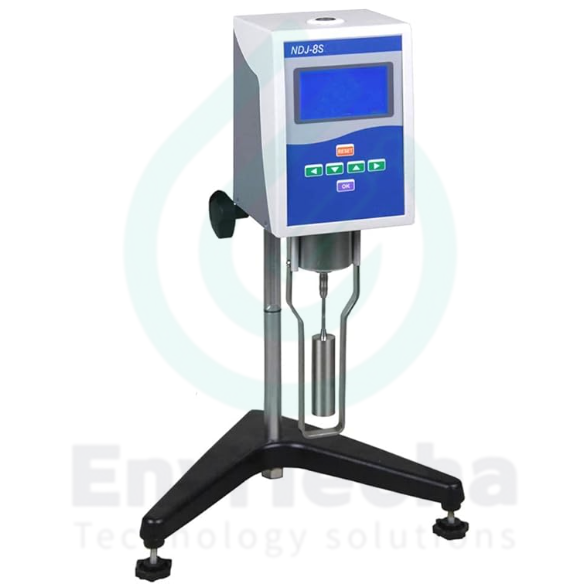

NDJ 8S :: Viscometer

Rotary Viscometer Viscosity Tester Meter with 4 Rotor Temperature Sensor Measuring Range 1 to 2×1000000 mPa.s

The instrument standard with 4 kinds of rotors (1, 2, 3, 4). NDJ-8S has eight gear speed (0.3, 0.6, 1.5, 3, 6, 12, 30, 60, revolutions per minute), which composed of 32 kinds of combination, can measure the determination of the viscosity of the liquid within the range of values. Technical Specifications Measuring Range: 1～2×10^6mPa.s

Rotors: #1,#2,#3 #4

Speed of Rotors: 0.3、0.6、1.5、3、6、12、30、60r/min

Automatic selection: Automatically selecting proper rotor and speed

Stability reading cursor block: when vertical cursor block is full reading data is in stable display

Measuring precision: ±1%（Newton liquid）

Power supply: AC 220V±10%, 50Hz±10% or 110V(According to your country’s voltage)

Working condition: Temperature from 5°C to 35，relatively temperature less than 80%

Dimensions:370×325×280 (mm)

Net Weight: 6.8kg

Standard Accessories: Digital display viscometer host; 1~4＃rotor; power adapter; protection frame; the base; rise and fall pillar; Instruction for use; Stay wrench

Optional Accessories: #0 rotor for testing viscosity below 0.1~10mPa.s
