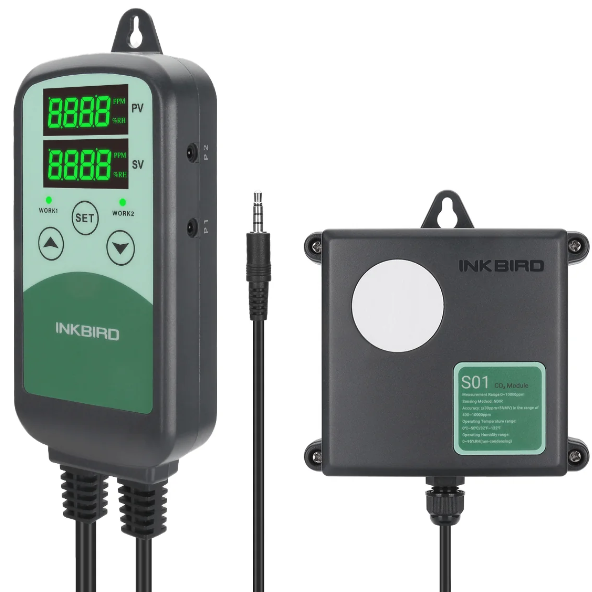

ICC-500T:: Programmable CO2 Controller with S01 Sensor - جهاز قياس وتحكم ثاني أكسيد الكربون
ICC-500T:: Programmable CO2 Controller with S01 Sensor - جهاز قياس وتحكم ثاني أكسيد الكربون
Couldn't load pickup availability
Specifications :
- Sensing Method: NDIR
- Working Temperature: 0°C~50°C/32°F~122°F
- Working Humidity : 0~95%RH (non-condensing)
- Storage Temperature: -30°C~70°C/-22°F~158°F
- Measurement Range: 0~9,999 ppm
- Response Time: (90%): 120 seconds
- Error: ± (30 ppm±3%MV)
- Application: Ventilation system, building control and HVAC equipment
- Working Temp of the Sensor : 3.3~5.5VDC
- Consumption of the Sensor: Normal: 19mA; Max: 75mA at lamp on peak
- Made in: China
- Inkbird brand
Product Details :
● Plug and play, simple operation.
● Dual relays, are able to connect with the CO₂ regulator or generator and the exhaust fan simultaneously.
● Dual readouts, displays the current measured CO₂ concentration and the set CO₂ concentration simultaneously.
● CO₂ calibration.
● Programmable high/low CO₂ concentration alarm.
● Widely applied in ventilation system, building control and HVAC equipment.
