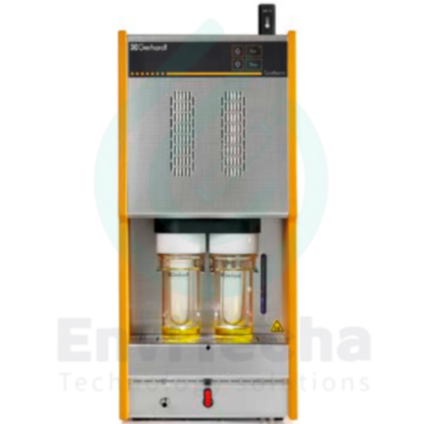

SOX412 :: Gerhardt, Rapid Automatic Fat Extraction System, SOXTHERM

specifications :

Number of extraction places : 2

Glass extraction beaker: 4

Holder for extraction thimbles :2

Extraction thimbles : 25

Tongs for extraction beaker : 1

Box of boiling stones,:  250 g

Rack for 6 extraction beakers : 1

Hose set, complete : 1

Line filter :1

Plug for safety temperature 135 °C :1

Plug for safety temperature 200 °C :1

Plug for safety temperature 300 °C :1

Level control for solvent tank : yes

Visual and acoustic error messages : yes

RS-485 interface : 2

Data cable RS-485 : 1

max. cooling water consumption [l/min] : 3

Cooling water pressure2) [bar] :3

Nominal voltage [VAC] :230 / 115

Frequency [Hz] : 50-60

Nominal wattage [W: 400

Weight [kg:28

Dimensions W / D / H [mm]:250 / 410 / 580

max. Temperature [°C]: 300

Temperature accuracy [°C]: +/- 0,5
