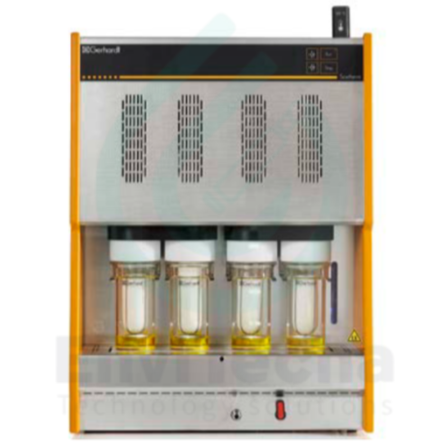

SOX414 :: Gerhardt, Solid Liquid Extraction system, SOXTHERM

SOXTHERM 4-place, macro, 230 V

Version Macro is equipped with extraction beakers macro with a liquid capacity of 50 - 150 ml, suitable for standard sample quantities

C. Gerhardt‘s innovative SOXTHERM rapid extraction system is the highest performed of all laboratory extraction systems available on the market. It is fast, very versatile, can be upgraded easily at any time and provides the best analysis results reliably and consistently. With SOXTHERM you can process up to 24 different samples simultaneously. The device runs fully automatically and can be operated without supervision with confidence. Just insert the extraction beaker and let it run: The time your presence is required is reduced to a minimum. The control software monitors and logs all processing and device data. Your advantage: The extraction processes in your laboratory are transparent, documented and traceable at all times.

specifications :

Number of extraction places : 4

Glass extraction beaker: 8

Holder for extraction thimbles :4

Extraction thimbles : 25

Tongs for extraction beaker : 1

Box of boiling stones,:  250 g

Rack for 6 extraction beakers : 1

Hose set, complete : 1

Line filter :1

Plug for safety temperature 135 °C :1

Plug for safety temperature 200 °C :1

Plug for safety temperature 300 °C :1

Level control for solvent tank : yes

Visual and acoustic error messages : yes

RS-485 interface : 2

Data cable RS-485 : 1

max. cooling water consumption [l/min] : 3

Cooling water pressure2) [bar] :3

Nominal voltage [VAC] :230 / 115

Frequency [Hz] : 50-60

Nominal wattage [W: 800

Weight [kg:36.5

Dimensions W / D / H [mm]:405 / 410 / 580

max. Temperature [°C]: 300

Temperature accuracy [°C]: +/- 0,5
