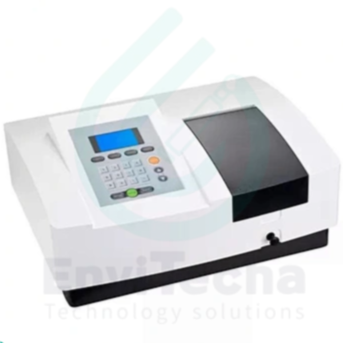

UV-90 :: Single Beam Spectrophotomete

1.Unique optical system, 1200 lines/mm grating and receiver to ensure its sound performance.
2.The optional PC software expands the capabilities of the instrument includes Photometric analysis, Quantitative
analysis, Spectral scanning, Kinetics, DNA/protein analysis, Multi-wavelength test, etc.
3.Adopts 51 microcomputer system, and store 200 test data and 100 standard curves;
4.Plug type deuterium lamp and tungsten lamp transfer lamps without optics debugging.
5.Large sample chamber can accommodate 5-100mm cuvettes of all kinds.

Features:-

Optical System                          Single Beam, Grating 1200 lines/mm
Wavelength Range                   190~1100nm
Spectral Bandwidth                   2 nm
Wavelength Accuracy                1nm
Wavelength Repeat ability         <=0.2 nm
Photo metric Accuracy              0.5%T
Photometric Repeatability          0.2%T
Photometric Range                   0-200%T, -0.3A~3A
Stray light                                   0.15%T
Stability                                     ±0.0002A/h@500nm
Baseline Flatness                      ±0.002 A
Noise                                       ±0.001 A
Wavelength Setting                 Auto
Light Source                           Deuterium & Tungsten lamp
Display                                   128*64 LCD
Detector                                  Silicon Photodiode
Output                                 USB port & Parallel port ( Printer)
Power                                  AC 220V/50Hz; AC 110V/60Hz
Dimension                            590*460*220mm
Net Weight                         16kg
Shipping Size                        700*580*340mm
Gross Weight                        20kg
