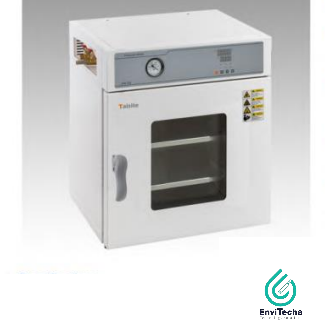

VO-52D:: vacuum drying oven

Description;-

 VO series vacuum drying oven is specially designed for drying heat sensitive, easy decomposition and easy oxidation substances.

When working, it can maintain a certain vacuum in the working room, and can be filled with inert gas, so that some complicated articles can also be dried quickly.

Features:-

• High quality material:
• Adopt thickened steel inner chamber, ensures that the instrument does not deform in long-term use under different vacuum degrees.
• Special designed structure:-
• The door is designed with double layer, inside layer fixed by springs, to offer better leakproofness.
•  Convenient temperature control:-
• PID control temperature with digital display, heating shelf adopt good quality aluminum alloy, with good thermal conductivity.
• Heat isolated casing and door:-
• The oven sides, top and door are all filled with heat-insulating material (not including glass), to ensure the operators are not scalded.

Specifications:-

Model :-                      VO-52D
Heating type               four-side heating
Performance:-

temp, range                  RT-10~250C

vacuum degree range   <133PA

temp. resolution            0.1°C
temp, fluctuation           21C
warming up time           100 MINUTES

Structure :-

chamber material                       stainless steel
thermal insulation material         aluminum silicate fiber
observation window                    bulletproof toughened glass
rated power                                 1.4kw

Controller:-

temp. control                          PID control LED display

vacuum degree display           vacuum meter

timer                                        0~9999minutes

sensor                                     PT100

Safety device                          over-temperature alarm

Specification:-

working size (W-D+Hmm)         415-370-340
exterior size (W-D-Hmm)        560-540-680
packing size (W+D+Hmm)         724-640-834
working capacity               52l

shelf load bearing            15kg
layer of shelf                2 layers
height between shelves        140mm
air inlet /air outlet          $14mm
power source                  AC220V (50/60Hz)/6.3A
nw/gw                          67/92kg
optional device               shelf, vacuum pump
