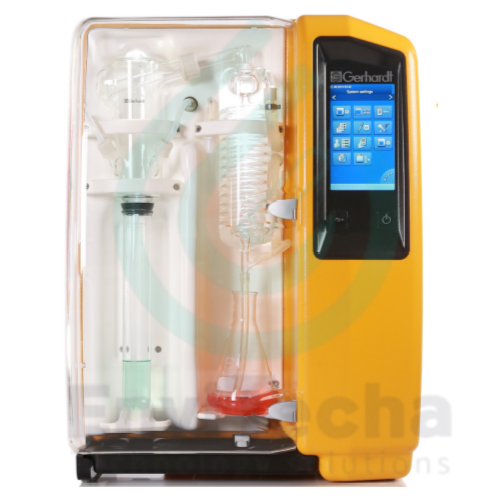

VAP 200 :: SMART STEAM DISTILLATION

C. Gerhardt proudly presents the brand new development of the successful VAPODEST line.
Additional functions increase the range of applications.
VAPODEST 200 comes micro processor controlled and equipped with embedded PC and 7 inch TFT touch display.
VAPODEST 200 complies with the data management requirements of certified or accredited laboratories (ISO 9001,
ISO 17025, GLP).

TECHNICAL INFORMATION:

Variable steam power : 10 -100 %
Size of Display : 7 inch, 480x800 pixel, touchscreen
Stand-By-Mode :Yes
Distillation time / sample: approx. 3.5 min
Recovery : > 99.5 %
Reproducibility: ± 1 %
Detection limit: 0.1 mg N absolute
Safety door: Yes
KJELDATHERM-tube KTG 250/300 ml volume: Standard configuration
Different sizes of digestion tubes can be used : Yes
Different sizes of Kjeldahl-flasks can be used : Yes
Connection to level control : Yes
Level sensors for tanks : Optional
Cooling water pressure : 1 - 6 bar
Nominal voltage* : 230 V, 50 Hz
Nominal wattage : 2200 W
Weight approx. :34 kg
Dimensions (W x D x H) : 527 x 390 x 697 mm
Pre-defined methods: Yes
Customer defined methods : Yes
Pump calibration : Yes
Order-No. : 12-0520
